NEW QUESTION 32

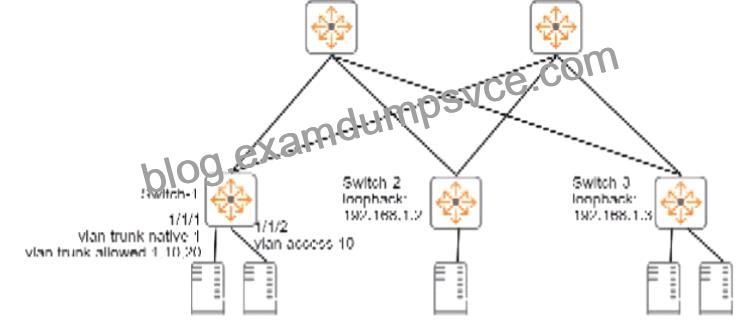

Refer to the exhibits.


Is this how the switch-1 handles the traffic?
Solution: A broadcast arrives in VLAN 10 on Switch-1. Switch 1 forwards the frame on all interfaces assigned to VLAN 10, except the incoming interface. It encapsulates the broadcast with VXIAN and sends it to 192.168.1.3, out not 192.168.1.2.

NEW QUESTION 33
You want to use NetEdit to configure an AtubaOS-CX switch.
Is this a minimum requirement for setting up communications between the switch and NetEdit?
Solution: Enable the REST interface in read-only mode.

NEW QUESTION 34
Is this a best practice when positioning ArubaOS-CX switches in data center networks?
Solution: Deploy Aruba CX 6300 switches as data center spine switches.

NEW QUESTION 35
Is this part of a valid strategy for load sharing traffic across the links in an Ethernet Ring Protection Switching (ERPS) ring?
Solution: Combine multiple links between two data centers into link aggregations (but not multi-chassis ones).

NEW QUESTION 36
Is this something that NetEdit 2.0 does after it discovers a switch?

NEW QUESTION 37
Is this correct positioning of AtubaOS-CX switches in the data center?
Solution: Aruba CX 8325 switches are an appropriate choice for leaf switches in a leaf-spine topology that uses Virtual Extensible LAN (VXLAN) with Ethernet VPN (EVPN).

NEW QUESTION 38
Is this how you should position switches in the ArubaOS-CX portfolio tor data center networks?
Solution: Deploy Aruba 83xx switches as core switches for very large three-tier data center networks.

NEW QUESTION 39
You ate using NetEdit to manage AruDaOS-CX switches. You want to deploy a standard conflg to the switches, but need the config to include a few device-specific settings such as hostname and IP address.
Is this what you should do?
Solution: Instead of using a standard configuration plan to deploy the configuration, create an auto config plan that uses scripts.

NEW QUESTION 40
Can you attach this type of ArubaOS-CX interface to a VRF?
Solution: A loopback interface

NEW QUESTION 41

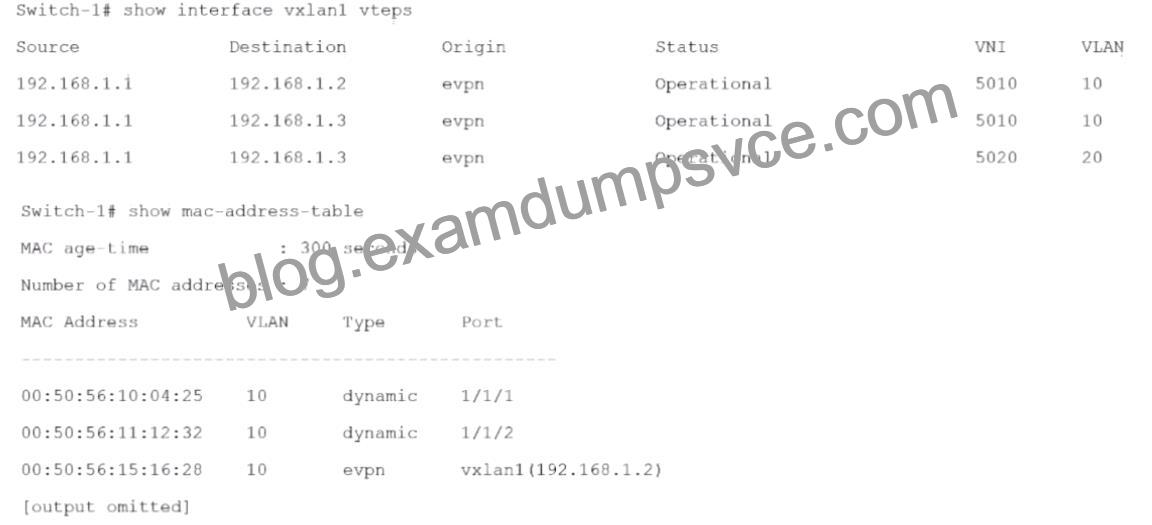

Refer to the exhibits.


Is this how the switch handles the traffic?
Solution: A frame with destination MAC address, 00:50:56:15:16:28, arrives with a VLAN 10 tag on 1/1/1 on Switch-1. Switch-1 encapsulates the frame with VXLAN and an IP header destined to 192.168.1.2.

NEW QUESTION 42

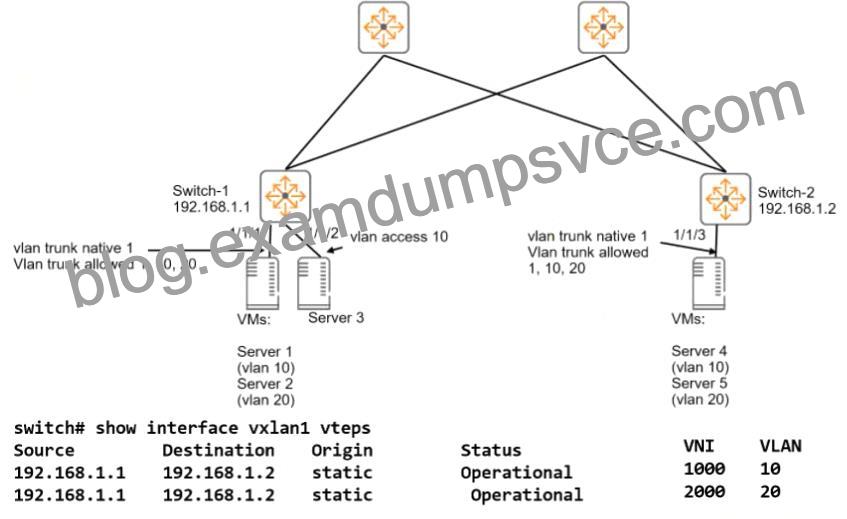

Refer to the exhibit.

Switch-1 and Switch-2 ate ArubaOS-CX switches that implement VXLAN WITHOUT Ethernet VPN (EVPN). Switch-2 uses the same VNI-to-VLAN mappings as Switch-1. Is this how the specified servers communicate?
Solution: The first time that Server I communicates with Server 3, It sends an ARP request to resolve Server 3’s MAC address.

NEW QUESTION 43
Your task is to configure an EVPN solution for a dual-stack IPv4 and IPv6 protocol in the overlay networks. Is this statement about EVPN and IPv6 correct?
Solution: The IPv6 and IPv4 overlay networks can be encapsulated with VXLAN and transmitted through the underlay network.

NEW QUESTION 44
You enter this command on an ArubaOS-CX switch:
Switch# show erps status ring 1
Is this what the specified status means?
Solution: The status is Protection, which means that the ring is up and fully connected with the RPL port blocked.

NEW QUESTION 45
Does this correctly describe Network Analytics Engine (NAE) limitations on ArubaOS-CX switches?
Solution: Different switches have different limitations for the number of NAE scripts, monitors, and agents supported.

NEW QUESTION 46
The architect designs a spine and leaf network for a single data center that will use multiple leaf switches as Virtual Tunnel End Points (VTEP). The architect needs to select the type of Integrated Routing & Bridging (IRB) for the solution.
Is this statement about the IRB type true?
Solution: Asymmetric IRB requires a third L3 VNI to route packets between ingress and egress VTEPs.

NEW QUESTION 47
A customer’s servers use ISCSI, and they send data and storage traffic on the same pair of I OGbE links. Is this a best practice for supporting the ISCSI requirements?
Solution: Set up dedicated switches to connect to iSCSl arrays. Connect top of rack (ToR) switches, which will support both data and storage traffic, to those dedicated switches.

NEW QUESTION 48
Is this a use case for implementing Enhanced Transmission Selection (ETS) on an ArubaOS-CX switch?
Solution: to help the switch to look inside tunneled traffic and apply different quality of service (QoS) settings to different types of traffic

NEW QUESTION 49
Is this a requirement for implementing Priority Flow Control (PFC) on an ArubaOS-CX switch interface?
Solution: configuring trust of Cos on the interface
