May-2024 EMC D-NWG-FN-23 Actual Questions and Braindumps

D-NWG-FN-23 Dumps To Pass EMC Exam in 24 Hours – ExamDumpsVCE

QUESTION 21
What are the correct steps to configure a static LAG on a Dell Networking OS10 switch?

interface port-channel 4 channel-group 4 mode passive
interface range ethernet 1/1/14-1/1/15 channel-group 4 mode on

interface port-channel 4 channel-group 4 mode on
interface range ethernet 1/1/14-1/1/15 channel-group 4 mode passive

interface port-channel 4 no shutdown
interface range ethernet 1/1/14-1/1/15 channel-group 4 mode on

interface port-channel 4 no shutdown
interface range ethernet 1/1/14-1/1/15 channel-group 4 mode active

QUESTION 22
Which type of protocol is OSPF and what metric does it use to determine best path?

Link-state protocol that uses a concept of cost as metric

Hybrid protocol that uses hop count as a metric

Path vector protocol that uses the Dijkstra algorithm as a metric

Distance Vector protocol that uses bandwidth and delay as metric

QUESTION 23
A network administrator enters the BGP command neighbor 10.0.2.1. The BGP router does NOT have any route to the 10.0.2.0 network. What will happen?

The router will form a successful adjacency with its 10.0.2.1 neighbor. The BGP state will be listed as connect.

The router will not form a successful adjacency with its 10.0.2.1 neighbor.

It will send gratuitous ARP messages to attempt to discover a route to its 10.0.2.1 neighbor.

It will send an ICMP packet to attempt to reach its 10.0.2.1 neighbor.

QUESTION 24
Which best describes traffic flow in a campus network environment?

North-East

South-West

East-West

North-South

QUESTION 25
What is an advantage of UFD?

Reduces connectivity loss.

Detects the loss of downstream connectivity.

Reduces network complexity.

Prevents the loss of upstream connectivity.

QUESTION 26
What is a valid OS10 iBGP configuration?

S2(config)# router bgp 64507
S2(config-router-bgp-64507)# peer-as 64507
S2(config-router-bgp-64507)# neighbor 192.168.32.1 S2(config-router-neighbor)# update-source loopback 0 S2(config-router-neighbor)# no shutdown

S2(config)# router bgp 64507
S2(config-router-bgp-64507)# neighbor 192.168.32.1
S2(config-router-bgp-64507)# remote-as 64507 S2(config-router-bgp-64507)# update-source loopback 0 S2(config-router-bgp-64507)# no shutdown

S2(config)# router bgp 64507
S2(config-router-bgp-64507)# neighbor 192.168.32.1
S2(config-router-neighbor)# remote-as 64507 S2(config-router-neighbor)# update-source loopback 0 S2(config-router-neighbor)# no shutdown

S2(config)# router bgp 64507
S2(config-router-bgp-64507)# remote-as 64507
S2(config-router-bgp-64507)# neighbor 192.168.32.1 S2(config-router-neighbor)# update-source loopback 0 S2(config-router-neighbor)# no shutdown

QUESTION 27
What is the valid range of VLAN IDs for Dell EMC Networking OS10 switches?

1-4096

1-4093

0-4092

0-4095

QUESTION 28
How does a DHCP Client make a request to a DHCP server following an offer?

Multicast

ACK

Broadcast

Unicast

QUESTION 29
Which command is used to create a non-default VRF instance?

ip vrf

ip vrf forwarding new-vrf

ip vrf forwarding vrf-test

interface ethernet 1/1/1

QUESTION 30
When configuring VRRP in tandem with VLT, what is the default VRRP mode?

active-active

primary-standby

active-standby

master-backup

QUESTION 31
Which LSA type contains information about routes redistributed into OSPF?

QUESTION 32
Which LSA types are used in a single area OSPF topology?

4, 5 and 7

1 and 7

1, 2 and 5

2, 3 and 5

QUESTION 33
What is the function of the authentication service?

Validates the user identity

Determines switch management commands

Validates switch order

Determines which services the user is enabled to access

QUESTION 34
What is required to enable ECMP in BGP?

OSPF must install equal cost paths in the routing table for BGP to use ECMP.

Maximum-paths and multipath-relax commands.

Sub-interfaces must be configured on the physical interface running BGP.

ECMP is not possible in BGP.

QUESTION 35

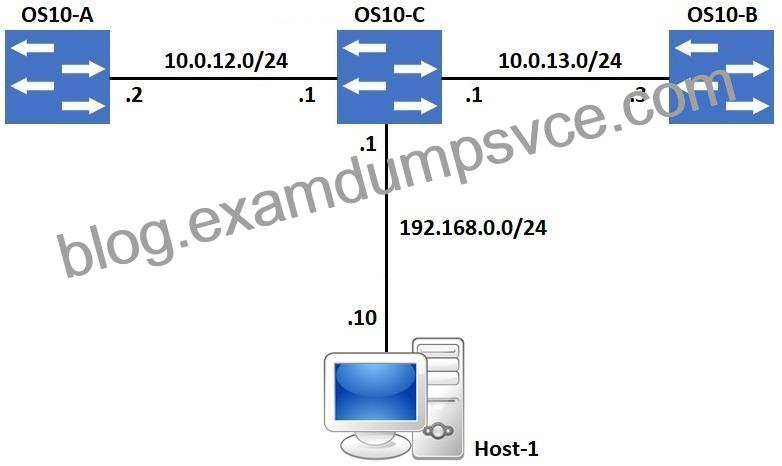

Refer to the exhibit.

A default route exists on OS10-C that points all internet traffic towards 10.0.13.3 on OS10-B. A network administrator needs to re-route internet traffic only sourced from Host-1 to 10.0.12.2 on OS10-A instead. What feature can the administrator implement to accomplish this goal?

Static Default Routing

OSPF Cost Manipulation

Source-Based Routing

Policy-Based Routing

QUESTION 36
A network administrator is designing a Layer 2 topology and requires separate spanning-tree roots to avoid having a given port blocked for all instances. Which spanning-tree protocols will meet this need?

STP & RSTP

RSTP-PV & MSTP

STP & RSTP-PV

RSTP & MSTP

QUESTION 37
What is the size of the VLAN tag in an Ethernet frame?

4 bytes

8 bytes

1 byte

2 bytes

QUESTION 38
To which IEEE standard are dynamic LAGs compliant on Dell EMC Networking OS10 switches?

802.3af

802.3ad

802.3ac

802.3ae

Loading …

EMC D-NWG-FN-23 Exam Syllabus Topics:

Topic	Details
Topic 1	Networking Essentials: This topic covers various sub-topics like network devices, interface and cabling options, and initial switch configuration. It provides a foundation for understanding how networks operate.
Topic 2	Automation: It introduces network automation capabilities. The sub-topics explain the role and benefits of using Smart Fabric services.
Topic 3	IP Networking: This topic explores IP addressing for IPv4 and IPv6, Layer 3 forwarding logic, and routing. The sub-topics help build expertise for configuring routed networks and leveraging IP capabilities.
Topic 4	Network Operations: This topic focuses on essential network operations skills like file transfers, troubleshooting, OS upgrades, and SNMP monitoring.
